Description:
This programmer is much higher programming speed (up to 2x) of high-capacity memories. It supports multiprogramming mode (up to four ). Well-designed cheap professional programmer, Production of high-density SMD technology, a unified user interface, easy to use, fully functional, reliable program running of application software, ultra-small code -runs faster, supports bilingual (English and Chinese), it can automatically identify the operating system to install and run under WIN 2000/WIN XP/WIN 2003/WIN 2008/WIN VISTA/WIN7/WIN8/WIN10 (32BIit/64Bit).

Specification:
Material: PCB
Weight: 357g

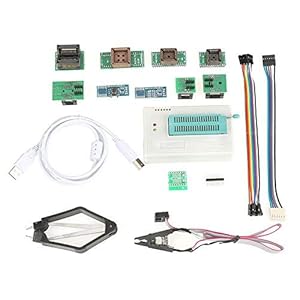

Package Included:

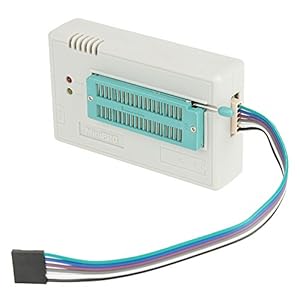

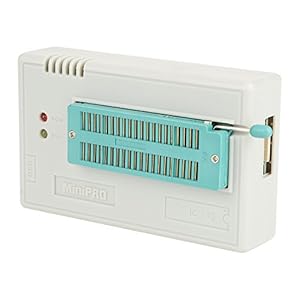

1*TL866II Plus Programmer
1*USB Cable (for both power supply and data communication)

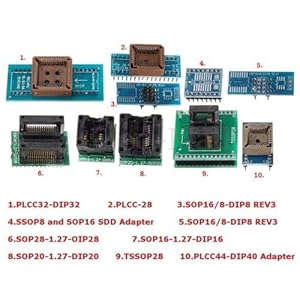

10*Adapters
1* ICSP Cable(6pins)
1*25 Serial Peripheral Interface Flash Adapter (without this adapter, the clip cannot be used on TL866 to program Serial Peripheral Interface 25 Flash chips!)
1*SOIC8 SMD Programming/Testing Clip
1*8-Pin Jumper Cable

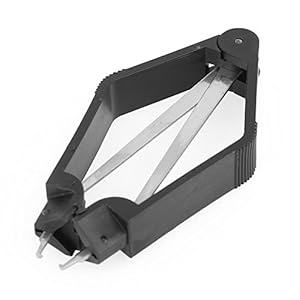

1*Pin Head

High Speed Programming:
This programmer has Built-in MCU with high-performance and high-capacity USB interface at the communication speed of 12Mbps

Unique ultra-low power consumption:
The whole programmer is equipped with the ultra-low power chips and it is furnished with electricity via USB Interface.

Easily portable performance:
This is one of the smallest products in the world and the dimensions are 10CM*6CM*2.5CM

Programmable programming power supply

Best overvoltage, overcurrent protection

40PIN universal pin

Upgrading Function

Second development function of chip serial number

Unique universal serial programming interface ICSP

54/74F/LS/HC CMOS4000 series IC functional test

Make sure this fitsby entering your model number.

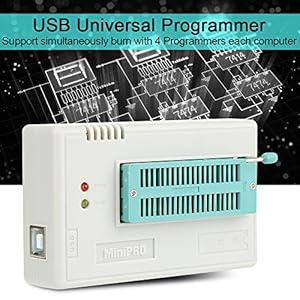

★【Feature】: Support simultaneously burn with 4 Programmers each computer. The minimum volume and the lowest power consumption and do not feel any heat in process. All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
★ 【Scope of Application】: Best internal 40 pin over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH.
★【Unique serial ICSP interface】: Supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
★ 【Test CMOS4000 74/54 series】: Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error. Chip auto serial number is the most complete and practical.
★ 【RC Calibration】: Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.
